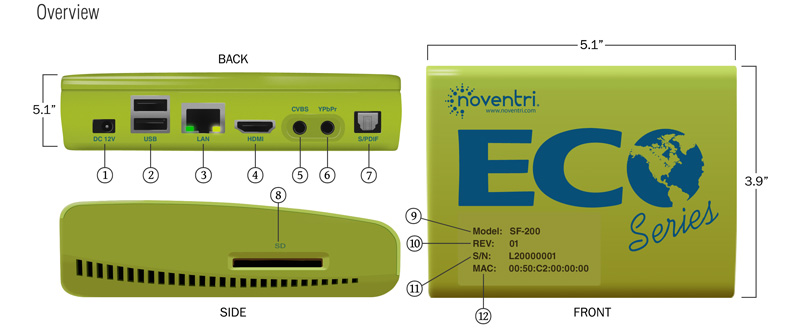

1. Power (DC 12V 1.5A)
2. USB Ports (2 Slots)
3. Ethernet Connection
4. HDMI Out
|
5. Composite Video
6. Component Video
7. Digital Audio
8. SD Card Slot |
9. Model Name / Number
10. Revision Number
11. Serial Number (MSN)
12. Media Access Control Address |
|
|
TECHNICAL SPECIFICATIONS |
MODEL NUMBER |
SF200 |
RESOLUTIONS
|
640X480, 1024X768, 1280X1024, 1600X1200,
800X600, 1280X720, 1366X768, 1920X1080 |
OUTPUT
|
HDMI (VGA & DVI ADAPTERS AVAILABLE) |
POWER |
US, EU & UK (ADAPTERS SOLD SEPARATELY) |
PORTS |
POWER
USB PORTS (X2)
RS-232
WIFI *
ETHERNET
HDMI OUT
COMPOSITE & COMPONENT VIDEO *
DIGITAL AUDIO * |
ENVIRONMENT |
|
AMBIENT FROM -40°F TO 145°F (-40°C TO 63°C)
ALTITUDE: 16,000’
HUMIDITY: 0-80% (NON-CONDENSING) |
 |
Our products are tested in the harshest of environments.
Read the full review of the product stress test. |
SLOTS |
SD CARD * |
POWER SUPPLY |
INPUT: 100-240V - 50/60HZ 0.5A
OUTPUT: 12V 1.5A |
VIDEO FORMATS |
FULL SCREEN BLURAY QUALITY HIGH DEFINITION:
MPEG4
WMV
|
GRAPHICS FORMATS |
PNG
JPG
GIF
BMP
TIF |
WHAT'S IN THE BOX |
NOVENTRI ECO-SERIES SF-200
4GB INDUSTRIAL SLC USB THUMB DRIVE |
SIZE |
HEIGHT: 3.9 INCHES (110 MILLIMETERS)
WIDTH: 5.1 INCHES (130 MILLIMETERS)
DEPTH: 1.5 INCHES (38 MILLIMETERS) |
WEIGHT |
6 OUNCES (170 GRAMS) |
CERTIFICATIONS |
CE APPROVAL
ROHS |

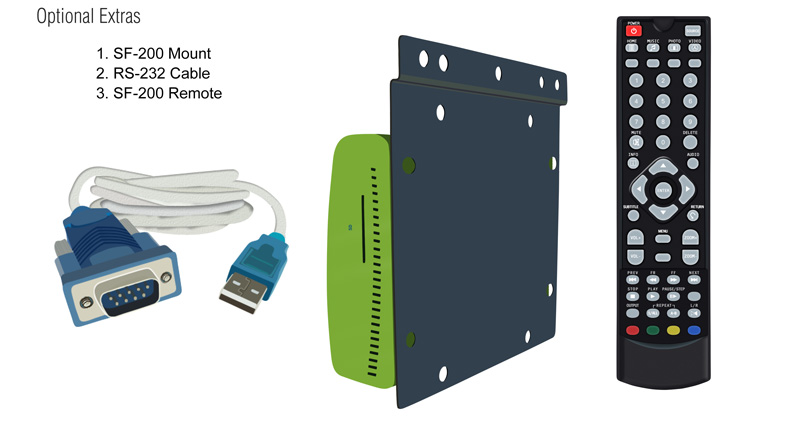

OPTIONAL ACCESSORIES |
REMOTE CONTROL
VGA & DVI ADAPTERS |
| |
FEATURE COMING SOON (*) |
